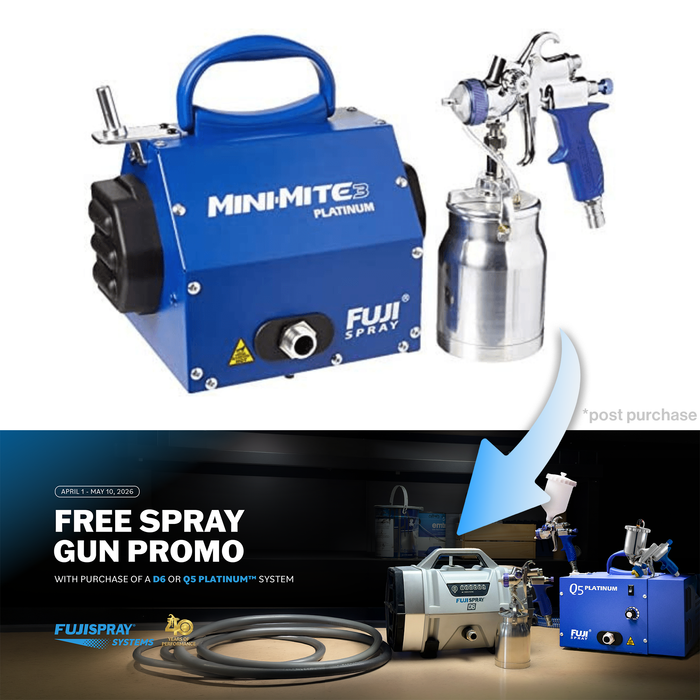

FUJI MINI MITE 3 PLATINUM T70
2903T70 Mini-Mite 3 PLATINUM HVLP Spray System with T-Model Bottom Feed Spray Gun
The Mini-Mite 3 PLATINUM HVLP spray system features a powerful 3-stage PLATINUM turbine system and non-bleed spray gun with Side-Mounted Pattern Control - allows for easy adjustments to the size of the fan width from a small 2 inch circle to a 12 inch wide oval-shaped pattern.
Heat Dissipation Chamber
Noise Reduction Covers
Air control valve
High-efficiency aircap for even less overspray
Rugged all-metal turbine case
Quick-change friction-fit turbine filter
2-year warranty on all parts and labour
This system comes with the T-70spray gun featuring the Side-Mounted Pattern Control, a bottom feed 1Qt cup, and is installed with a 1.3mm aircap set.
WEIGHT: 27.8lb / 12.61kg
DIMENSIONS :16.5 x 14 x 15.5 inches / 42 x 35.5 x 38.5 cm
The Fuji Spray Heat Dissipation Chamber
Fuji Spray has designed a unique method of removing any heat build up from the Turbine case. Excess heat is channeled to a Heat Dissipation Chamber located at the rear of the case.
Fuji Spray Noise Reduction Covers
The Mini-Mite PLATINUM turbines are equipped with a method to reduce noise. The Noise Reduction Covers house the filters.
Important: The Mini-Mite PLATINUM series turbines have different size filters to the other Mini-Mite Turbines. These Mini-Mite PLATINUM filters (7224-2) are available in a 2-pack and are semi-circle shaped, rather than square.
The Mini-Mite 3PLATINUM HVLP Spray System can work with any of our non-bleed turbine spray guns - choice of 3 different: T-70 Bottom Feed, T-75G Gravity Feed, or G-XPC Gravity Feed.
